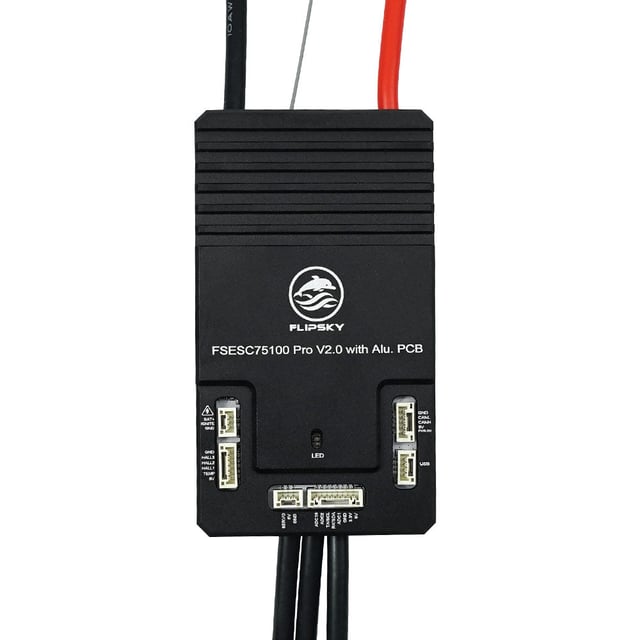

Flipsky 75100 Pro V2.0 With Aluminum PCB Based on VESC For Electric Skateboard / Scooter / Ebike Speed Controller
FLIPSKYFLIPSKY
4.0

Flipsky 75100 Pro V2.0 With Aluminum PCB Based on VESC For Electric Skateboard / Scooter / Ebike Speed Controller

USD 98.00

Description

Spec: Firmware: 6.02 (firmware update supported) Size: L103mm*W58mm*H27.7mm Voltage:14-84V (4-20S) Current:100A Continuous BEC:5V@1.5A Support BLDC square wave mode control and FOC sine wave mode ERPM:150000 Control Interface Ports:USB,CAN,UART Supported Sensors:ABI，HALL，AS5047，AS5048A Input Set Support:PPM，ADC，NRF,UART Wire Size: 10AWG(75100 Pro) Programmable: Yes Regenerative Capacity: Yes Phase Filter: Yes Power Switch Button: Red integrates Bluetooth module function The maximum peak current is 150A the absolute maximum current is recommended to be set to 200A Wiring diagram:

FLIPSKY deal

You could save on FLIPSKY Flipsky 75100 Pro V2.0 With Aluminum PCB Based on VESC For Electric Skateboard / Scooter / Ebike Speed Controller with a FLIPSKY promo code:

    FLIPSKY logo

    10% off

    2 uses
    high

    worked 2 months ago

    10% Off Storewide at FLIPSKY
View all FLIPSKY coupons and promo codes

More FLIPSKY Products

Flipsky 75100 V2.0 With Aluminum PCB With Power Key Switch Button Based on VESC For Electric Skateboard / Scooter / Ebike Speed Controller

Flipsky 75100 V2.0 With Aluminum PCB With Power Key Switch Button Based on VESC For Electric Skateboard / Scooter / Ebike Speed Controller

Specs: Size: 103X58X24mm Voltage:14-84V (4-20S) Continuous Current: 100A Peak Current: 250A Firmware: 5.02; firmware upgrade available (Phase filter needs to be turned off for firmware 5.03 or newer) BEC: 5V@1A Modes: DC，BLDC，FOC(sinusoidal) Control Interface Ports: USB,CAN,UART Supported Sensors: ABI，HALL，AS5047，AS5048A Input Set Support: PPM，ADC，NRF,UART Wire Size: 12AWG Programmable: Yes Regenerative Capacity: Yes Power Switch Button: Red Wiring diagram:

USD 88.00

Flipsky TFT Advanced display with GPS function IP65 waterproof for Ebike

Flipsky TFT Advanced display with GPS function IP65 waterproof for Ebike

Support Esc Types: FTESC: Flipsky Non VESC ESCs FSESC: ESCs based on VESC FOCBOX: FOCBOX Unity Product Structural dimensions: Specification: Dimension: L*W*H (mm) 124.4*68.1*18.5(mm) Display Size 3.2 “ Display Type TFT Display Color RGB Display Image Resolution 240*320 Voltage/Current 5V/500mA Working Temperature -20℃～+70℃ Storage Temperature -30℃～+70℃ IP Rate IP65 Weight 116g Communication Mode UART Product Wiring Diagram: Product Common basic operations: Gear switch: In the main interface, short press the plus key to switch gears; Parameter description: The gear switch function is only applicable to the PAS mode of the "FTESC" electronic adjustment type. PAS mode: 0 gear The speed is zero, and other different gears can control different speeds. The higher the gear, the faster the speed. Data display: In the main interface, short press the minus key to enter the All data interface; short press the minus key again to return to the main interface. Riding mode: In the main interface, double-click the minus key to enter the riding mode; double-click again to end the current riding record. Riding record: In the main interface, long press the plus key to enter the riding record interface; long press the plus key again to exit; If you want to clear the riding record, long press the minus key. Parameter setting: In the main interface, long press the minus key to enter the parameter setting interface; long press the minus key again to return to the main interface. EBike Cycling Computer TFT Screen User Manual（please Scan QR code）： https://cdn.shopify.com/s/files/1/0011/4039/1996/files/EBike_TFT_Color_Display_Manual_105f57a8-8e9b-40a7-bf66-5e4a4925e7ae.pdf?v=1731379183 Kindly Remind: Improper operation may cause useless or even damage. We Strongly recommend you reading this manual carefully before using this product and strictly follow the prescribed operating procedures. We are not responsible for any liability reason arising from the misuse of this product, including but not limited to liability for direct or indirect loss or damage, and we do not assume any liability for unauthorized modifications for the product. We reserve the right to change product design, appearance, performance and usage requirements without prior notice to the buyer

USD 45.00

Flipsky Sensored Outrunner Brushless DC Motor Battle hardened 63100 140KV 170KV 190KV 5500W

Flipsky Sensored Outrunner Brushless DC Motor Battle hardened 63100 140KV 170KV 190KV 5500W

Warm Tips: Support custom KV value, round shaft pulley will default come with 16T pulley/D shaft will come with 15T,please leave order notes if you have any requirements,thanks. Spec: Weight: 1.4KG Max Power: 5500W Motor KV: 190/170/140KV Max. current: 100A Battery type: 4-14S (4-12S is safe for 190KV) Recommend ESC: VESC6 Max Torque: 10Nm (in a very short time, no more than 30S) Diameter(mm): 63 Length(mm): 100 Total length (mm):130mm(including 8mm round shaft) / 125mm(including 10mm D shaft) Shaft(mm): 8mm/10mm Bullet connector: 4mm Hall sensor connector: 6-pin JST-PH High efficiency within 8000rpm, no more than 10000rpm  Detail:     10MM D Shaft Motor Drawings： 8MM Round Shaft Motor Drawings：     10MM Round Shaft Motor Drawings：   140KV Motor Curve Diagram link 170KV Motor Curve Diagram link 190KV Motor Curve Diagram link Reference video:

USD 143.00

Flipsky BLDC Belt Motor Battle Hardened 6374 140KV 170KV 190KV 3500W for Electric Skateboard

Flipsky BLDC Belt Motor Battle Hardened 6374 140KV 170KV 190KV 3500W for Electric Skateboard

Warm Tips: Support custom KV value, round shaft pulley will default come with 16T pulley/D shaft will come with 15T,please leave order notes if you have any requirements,thanks. Feature: KV: 140/190KV Max Power: 3500Watts Max Current: 85 Amps Volts: 4-14S Max Torque: 8Nm Motor Resistance: 0.05Ohm Recommend ESC: 3-12S 50A (FSESC4.12 50A or FSESC 6.6 60A) The number of pole: 14 Net weight: 980g Motor wire:12AWG Shaft size : 8mm/10mm Reference Information: The screws used for the motor are M4 metric bolts. Using our motor mounts, we recommend using M4 Socket Cap bolts. Screws to mount the motor are not included with the motor. If you choose round shaft motor, shipping includes the key for the keyway If you choose the shipping comes with pulley, will come with 8mm steel material pulley. The Flipsky logo is in different places, will be shipped randomly. More details: 8MM Round Shape Shaft Drawing（108mm length）:  10MM D-Shape Shaft Drawing(99 mm length）:    140KV Motor Curve Diagram link 170KV Motor Curve Diagram link 190KV Motor Curve Diagram link Reference Video:

USD 93.00
