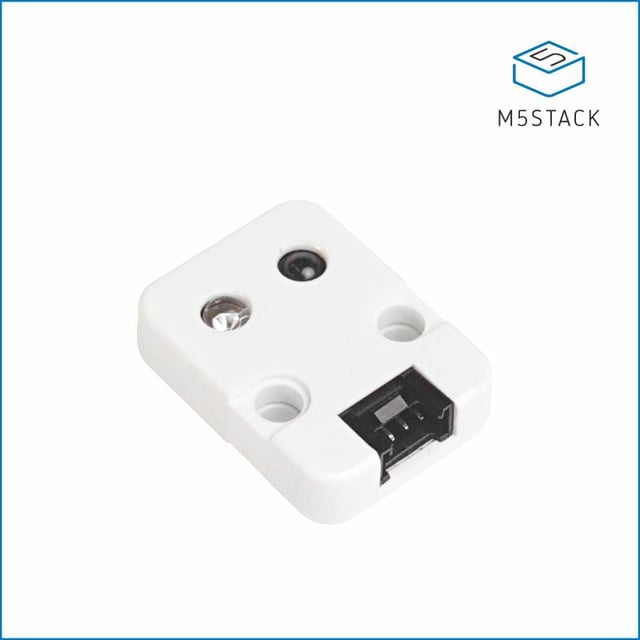

Mini Infrared Emitter & Receiver Unit
M5StackM5Stack
4.0

Mini Infrared Emitter & Receiver Unit

USD 3.95

Description

PRODUCT DETAILS Description IR Unit is an infrared photodiode unit that integrates both an infrared transmitter and receiver. It is designed to be connected to the M5Stack controllers through the HY2.0-4P interface for controlling infrared transmission and reception. The unit supports infrared encoding and decoding.Due to its reliable short-range transmission capabilities, infrared remote control is widely used in everyday life for controlling home appliances and consumer electronics. The IR unit enables seamless integration with the M5Core, allowing you to incorporate infrared functionality into your projects and interact with a variety of devices using infrared technology. Product Features 1x infrared emitter(wavelength:940nm) 1x infrared receiver Distance range: < 5m Software Development Platform: Arduino, UIFlow(Blockly,Python) Two Lego-compatible holes Include 1x IR Unit 1x Grove Cable Specification Resources Parameter infrared emitter wavelength 940nm Net weight 4g Gross weight 17g Product Size 32*24*8mm Package Size 67*53*12mm LEARN AND DOCUMENTS DOCUMENTS Night Lamp with Atom Lite, Neopixel Strip and IR Remote Night Lamp with Atom Lite, Neopixel Strip and IR Remote This project replaced my daughter's old, broken night lamp. Its main components are: Atom Lite ESP32, neopixel strip, IR unit.
