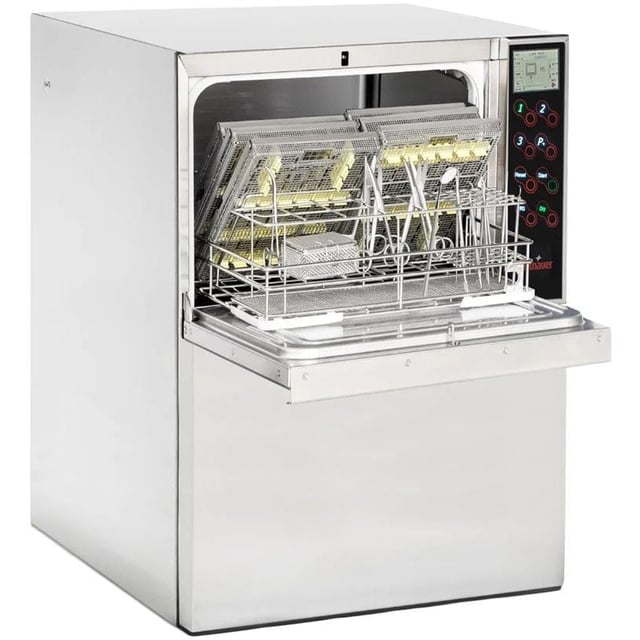

Tuttnauer TIVA2 Thermal High Disinfector Washer

USD 6229.95

Description

The Tuttnauer TIVA2 Thermal High Disinfector Washer is best used for dental and medical practices in need of strict cleaning, disinfection, and sterilization of instruments before they can be used on patients. Warranty: 2 Years. This unit can safely kill bacteria and viruses on delicate instruments using > 194° moist heat for a minimum of five minutes. During the sequence, it rinses the tools, cleans with demineralized water, rinses again with warm water, then undergoes a thermal disinfection. After this, the instruments are thoroughly dried with hot air. Features Tuttnauer TIVA2 Thermal High Disinfector Washer Features Can be used for both dental and medical instruments. Touch panel, color graphic display, and real-time monitoring. A total of 40 programs: Preset and programmable cycles. Air drying prefilter and HEPA H14 filter. Integrated water softener and steam condenser. Two dosing pumps with flowmeter for alkaline detergent and neutralizer (additional pump optional for TIVA2H TD). USB/printer for data documentation. Provides complete and total evacuation of previous water (ETS). Manual Glass Door: The slim design allows it to be placed in a small space, maximizing the load capacity. 316 L high quality AISI washing chamber. Can be loaded with different types of loads. Three heating elements. Short Cycles: Preheated tank to reduce the cycle time. Specifications Tuttnauer TIVA2 Thermal High Disinfector Washer Specifications Usable Chamber Volume: 65 L. Depth: 21.3" (520 mm). Width: 23.4" (595 mm). Height: Counter-Top Models: 23.6" (600 mm). Under-Counter Models: 32.2" (818 mm). Flow Rate of the Chamber Wash Pump: 100 L/min. Flow Rate: 30 W drying fan with HEPA filter 18 m3/h. Absorbed Power: 2.9 kW. Internal Detergent Tank(s): Counter-Top Models: 0.6 L. Under-Counter Models: 0.5 L. Utility Requirements: Voltage: 220/230 V. Electrical Connections: 208 + 240 V 1 phase 60 Hz. Water Connections: Cold water connection (default). Connection for demineralized water. Integrated Water Softener with Salt Box. R.O. water system is required (failure to incorporate will void your warranty). Configurations Tuttnauer TIVA2 Thermal High Disinfector Washer Configurations #TIVA2-D: Counter-Top - For Dental Practices. #TIVA2-M: Counter-Top - For Medical Practices. #TIVA2H-D: Under-Counter - For Dental Practices. #TIVA2H-M: Under-Counter - For Medical Practices. Literature Tuttnauer TIVA2 Thermal High Disinfector Washer Literature Tuttnauer TIVA2 Washers Thermal High Disinfector Line Brochure
