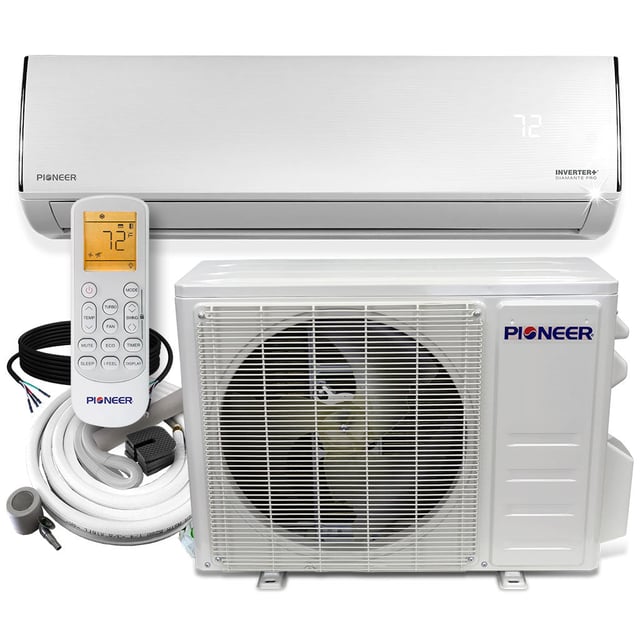

Pioneer® Diamante Pro Series 12,000 BTU 19 SEER2 Ductless Mini-Split Air Conditioner Inverter+ Heat Pump Full Set 115V with 16 Ft. Kit

Name: Pioneer® Diamante Pro Series 12,000 BTU 19 SEER2 Ductless Mini-Split Air Conditioner Inverter+ Heat Pump Full Set 115V with 16 Ft. Kit
Brand: Pioneer Mini Split Store
Price: 788 USD
Availability: InStock

USD 788.00

Description

Overview Summary High Efficiency Diamante Pro Ductless Mini Split Heat Pump System Cooling capacity: 12,000 BTU/H with 19 SEER2 / 10 EER2 efficiency Heating capacity: 12,200 BTU/H with 8.5 HSPF2 / 3.21 COP2 efficiency Voltage: 110/120V, 60Hz, 1Ph High Wall Mounted Air Conditioning & Heating System Variable Speed DC Inverter Operation Mode Low Ambient Unit (-13°F) AHRI Estimated Annual Operating Costs: Cooling: $79.00 Heating: $254.00 [[SERIES]] What's Included Indoor Unit Outdoor Unit Wireless Remote Control (with wall holder and batteries) 16 Ft. Copper Lines 16 Ft. Electrical Wire 10 Ft. Drain for indoor/outdoor Wall Passage Sleeve Putty for Wall Hole Leak Guard Sealer Wrapping Tape Installation Manual User’s Manual Our Guarantee 5 years Warranty for Parts 5 years Warranty for Compressor Features [[FEATURES]] Technical Information Performance Data Power Supply: 110~120V, 60Hz, 1Ph Cooling Rated Capacity: 12,000 BTU/h Cooling Capacity Range: 3,600~13,200 BTU/h Cooling SEER2: 19.0 BTU/W.h Cooling EER2: 10.0 BTU/W.h Heating Rated Capacity: 12,200 BTU/h Heating Capacity Range: 3,700~13,500 BTU/h Heating HSPF2 (Region IV/V): 8.5 / 7.2 BTU/W.h Heating C.O.P.2 (47°F/5°F): 3.21 / 1.75 W/W Refrigerant Type: R410A Suitable Area: 200~450 Sq.F Indoor Unit Data Part Number: WT012ALFI19HLE Air Flow (Hi/Med/Lo): 383 / 318 / 253 CFM Sound Level (Hi/Med/Lo): 39 / 34 / 29 dB(A) Net Dimensions (WDH): 32 x 8-1/8 x 11-1/2 Inches Carton Dimensions (WDH): 34-7/8 x 11 x 14-3/8 Inches Net / Gross Weight: 19.8 / 26.5 lbs Outdoor Unit Data Part Number: YN012ALFI19RPE Breaker Needed: 20A (single-pole) Sound Level: 52 dB(A) Net Dimensions (WDH): 28-1/8 x 11-1/2 x 19-5/8 Inches Carton Dimensions (WDH): 33 x 13-1/4 x 21-5/8 Inches Net / Gross Weight: 55 / 66.1 lbs Manuals & Documents Technical Brochure User & Installation Manual Service Manual AHRI Certificate Energy Guide

Pioneer Mini Split Store promo code

You could save on Pioneer Mini Split Store Pioneer® Diamante Pro Series 12,000 BTU 19 SEER2 Ductless Mini-Split Air Conditioner Inverter+ Heat Pump Full Set 115V with 16 Ft. Kit with a Pioneer Mini Split Store promo code:

10% off

4 uses

high

worked 4 months ago

Get 10% off with coupon code

View all Pioneer Mini Split Store coupons and promo codes

More Pioneer Mini Split Store Products

24V Interface Module Kit for Pioneer® Quantum Series 230V Mini Split Systems

Overview Description This handy interface kit enables you to connect your Pioneer mini split system to, and be controlled by, any analog 24V heat pump thermostat brand such as Nest, Honeywell, or Ecobee. The kit includes everything you need to get started, and requires no external power source when combined with our inverter-driven equipment. *Each indoor unit must be wired to its own integrated control system and thermostat. Compatibility Compatible with all Pioneer® Quantum Series systems that operate on 230V service. Compatible systems include: WYS/WS (230V only) CYB/CB Series CYK/CK Series UYB/UB Series FYB/FB Series RYB/RB Series Specifications Power Source: 208/230V~60Hz/1Ph Includes additional T1 Sensor for applications using fan relays Optional viewing hole for LED readout Wall mounting hardware provided Manuals & Downloads Installation Manual

USD 139.00

EZFlex™ Insulated Flexible Lineset for Mini-Split Systems - 16 Feet

Description Take the strain, pain, and worry out of making those delicate copper piping bends with Pioneer's newest EZFlex™ flexible line set for ductless mini split systems. Prevent kinks, avoid bending complications, and gain freedom when it comes to routing runs. Traditional line sets are typically made of soft copper which is not always ideal for certain installations, as it is prone to kinking or toughening with tight or repeated bends. This product solves that dilemma by offering a tougher steel construction, allowing for deployment in more unique environments requiring greater flexibility or a tighter bend radius. EZFlex™ is approved for usage on air conditioners and heat pumps as liquid, suction, hot gas discharge line use, as long as none of these uses exceeds the maximum recommended operating pressures indicated on the equipment. Summary Set of 2 Stainless Steel Pipes w/ Black Rubber Insulation Compatible with Flare-type mini split connections Improved bending radius over copper linesets Suitable for most project and applications Specifications Design Pressure: 650 PSIG Max abnormal pressure 3600 PSIG Length: 16 feet Insulation thickness: 1/2" Diameters selected when adding to cart Working temperature: -40°F ~ 248°F This is a specialty product and cannot be shortened, patched, or repaired.

USD 178.00

EZFlex™ Insulated Flexible Lineset for Mini-Split Systems - 16 Feet

USD 178.00

60A Non-Fusible AC Disconnect Box 230-Volt

Overview Summary Rainproof and highly durable UL Listed Includes punch-outs for side, bottom, or rear entry for conduits 60A/230VAC/1Ph 5" x 2.5" x 7.5" (WDH) Perfect for any type/size of air conditioner or outdoor appliance (up to 60A) Description This metallic disconnect box for air conditioners is designed to act as an easy pull-out switch to cut off power to the machine. It is non-fuse, puller-type and includes the bus bar. Suitable for usage on circuits capable of delivering up to 10,000 Amps max.

USD 15.99
