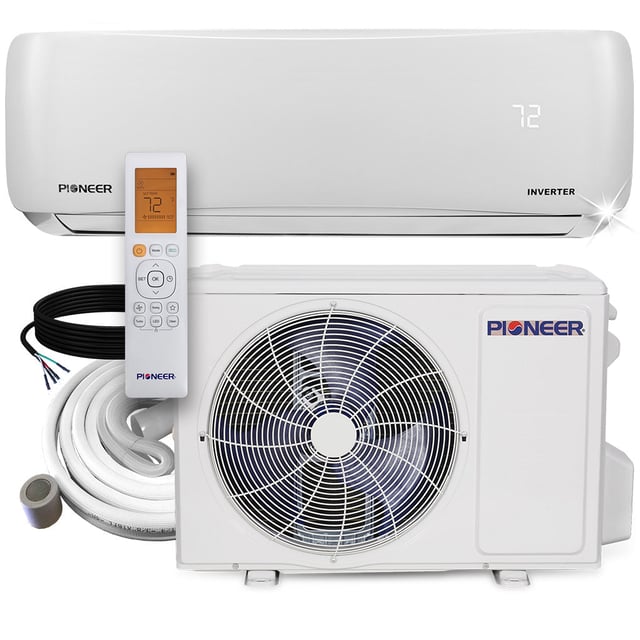

Pioneer® EStar™ 12,000 BTU 23.1 SEER2 Ductless Mini-Split Inverter++ Energy-Star Air Conditioner Heat Pump System Full Set 230V

Name: Pioneer® EStar™ 12,000 BTU 23.1 SEER2 Ductless Mini-Split Inverter++ Energy-Star Air Conditioner Heat Pump System Full Set 230V
Brand: Pioneer Mini Split Store
Price: 1063 USD
Availability: InStock

USD 1063.00

Description

Overview Summary Ultra-High Efficiency Inverter++ ductless mini split heat pump system Cooling capacity: 12,000 BTU/H with 23.1 SEER2 / 12.5 EER2 efficiency Heating capacity: 12,000 BTU/H with 9.3 HSPF2 / 3.5 COP2 efficiency Voltage: 208~230 V, 60 Hertz, 1Ph High Wall Mounted Air Conditioning & Heating System Variable Speed DC Inverter Operation Mode Customizable length copper line set with flare connections Energy-Star Certified AHRI Estimated Annual Operating Costs: Cooling: $72.00 Heating: $235.00 [[SERIES]] What's Included Indoor Unit Outdoor Unit Wireless Remote Control Various Installation Kit Options Available Flare Connection Leak Guard Sealer Installation Manual User’s Manual Manufacturer Warranty Our Guarantee 5 year parts limited warranty 5 year compressor limited warranty Features [[FEATURES]] Technical Information Certifications Performance Data Power Supply: 208~230V, 60Hz, 1Ph Cooling Rated Capacity: 12,000 BTU/h Cooling Capacity Range: 3,536~12,931 BTU/h Cooling SEER2: 23.1 BTU/w Cooling EER2: 12.5 BTU/w Heating Rated Capacity: 12,000 BTU/h Heating Capacity Range: 3,747~12,550 BTU/h Heating HSPF2 (Region IV/V): 9.3 / 7.1 BTU/W.h Heating C.O.P.2 (47°F/5°F): 3.50 / 2.24 W/W Refrigerant Type: R410a Suitable Area: 200~450 Sq.F Indoor Unit Data Part Number: WS012GMFI22HLE Air Flow (Turbo/Hi/Med/Lo): 323 / 306 / 212 / 147 CFM Sound Level (Hi/Med/Lo): 37.5 / 30.0 / 21.5 dB(A) Net Dimensions (WDH): 31"-1/2 x 7"-3/8 x 11"-5/8 Carton Dimensions (WDH): 34"1/2 x 11"-1/4 x 15" Net / Gross Weight: 19 / 24 Lbs Outdoor Unit Data Part Number: YN012GMFI22RPE Sound Level: 53.5 dB(A) Breaker Needed: 15A (double-pole) Net Dimensions (WDH): 30"-1/8 x 11"-7/8 x 21"-7/8 Carton Dimensions (WDH): 34"-7/8 x 13"-1/4 x 24" Net / Gross Weight: 63.7 / 69 Lbs Manuals & Downloads Series Technical Brochure Series User Manual Series Installation Manual Series Service Manual Disassembly Guide AHRI Certificate Energy Guide

Get a promo code on Pioneer® EStar™ 12,000 BTU 23.1 SEER2 Ductless Mini-Split Inverter++ Energy-Star Air Conditioner Heat Pump System Full Set 230V

You could save on Pioneer Mini Split Store Pioneer® EStar™ 12,000 BTU 23.1 SEER2 Ductless Mini-Split Inverter++ Energy-Star Air Conditioner Heat Pump System Full Set 230V with a Pioneer Mini Split Store promo code:

10% off

4 uses

high

worked 4 months ago

Get 10% off with coupon code

View all Pioneer Mini Split Store coupons and promo codes

More Pioneer Mini Split Store Products

24V Interface Module Kit for Pioneer® Quantum Series 230V Mini Split Systems

Overview Description This handy interface kit enables you to connect your Pioneer mini split system to, and be controlled by, any analog 24V heat pump thermostat brand such as Nest, Honeywell, or Ecobee. The kit includes everything you need to get started, and requires no external power source when combined with our inverter-driven equipment. *Each indoor unit must be wired to its own integrated control system and thermostat. Compatibility Compatible with all Pioneer® Quantum Series systems that operate on 230V service. Compatible systems include: WYS/WS (230V only) CYB/CB Series CYK/CK Series UYB/UB Series FYB/FB Series RYB/RB Series Specifications Power Source: 208/230V~60Hz/1Ph Includes additional T1 Sensor for applications using fan relays Optional viewing hole for LED readout Wall mounting hardware provided Manuals & Downloads Installation Manual

USD 139.00

EZFlex™ Insulated Flexible Lineset for Mini-Split Systems - 16 Feet

Description Take the strain, pain, and worry out of making those delicate copper piping bends with Pioneer's newest EZFlex™ flexible line set for ductless mini split systems. Prevent kinks, avoid bending complications, and gain freedom when it comes to routing runs. Traditional line sets are typically made of soft copper which is not always ideal for certain installations, as it is prone to kinking or toughening with tight or repeated bends. This product solves that dilemma by offering a tougher steel construction, allowing for deployment in more unique environments requiring greater flexibility or a tighter bend radius. EZFlex™ is approved for usage on air conditioners and heat pumps as liquid, suction, hot gas discharge line use, as long as none of these uses exceeds the maximum recommended operating pressures indicated on the equipment. Summary Set of 2 Stainless Steel Pipes w/ Black Rubber Insulation Compatible with Flare-type mini split connections Improved bending radius over copper linesets Suitable for most project and applications Specifications Design Pressure: 650 PSIG Max abnormal pressure 3600 PSIG Length: 16 feet Insulation thickness: 1/2" Diameters selected when adding to cart Working temperature: -40°F ~ 248°F This is a specialty product and cannot be shortened, patched, or repaired.

USD 178.00

EZFlex™ Insulated Flexible Lineset for Mini-Split Systems - 16 Feet

USD 178.00

60A Non-Fusible AC Disconnect Box 230-Volt

Overview Summary Rainproof and highly durable UL Listed Includes punch-outs for side, bottom, or rear entry for conduits 60A/230VAC/1Ph 5" x 2.5" x 7.5" (WDH) Perfect for any type/size of air conditioner or outdoor appliance (up to 60A) Description This metallic disconnect box for air conditioners is designed to act as an easy pull-out switch to cut off power to the machine. It is non-fuse, puller-type and includes the bus bar. Suitable for usage on circuits capable of delivering up to 10,000 Amps max.

USD 15.99
