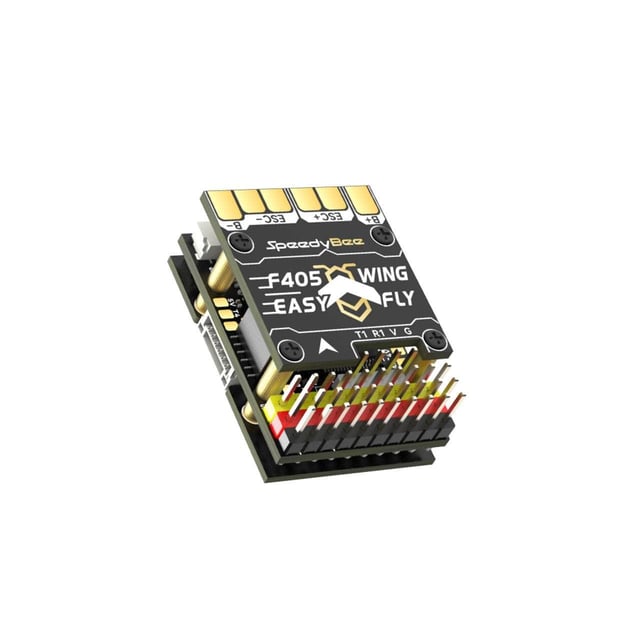

SpeedyBee F405 WING APP Mini 2-6S Fixed Wing Flight Controller
RaceDayQuadsRaceDayQuads
4.0

SpeedyBee F405 WING APP Mini 2-6S Fixed Wing Flight Controller

USD 43.49

Description

Experience smooth, high-performance flight with the Speedy Bee F405 Wing APP Mini Flight Controller. Its compact size offers convenience and affordability without compromising on features or usability. Expertly designed for seamless operation, this controller is your go-to choice for a superior flying experience. Check out our other wing flight controllers, and our SpeedyBee products!   Features With a powerful STM32F405 MCU, built-in barometer, 6 UARTs, I2C, wireless setting through Bluetooth and WiFi, and 12 PWM ports available (9x pin headers + 2x solder pads and 1 LED pad), this is simply a better, more compact, and lighter version of the F405 Wing APP we all love. Perfect for any fixed wing on iNav or Ardupilot. Specifications Product Name: SpeedyBee F405 WING MINI FC board MCU: STM32F405, 168MHz, 1MB Flash IMU(Gyro&Accelerometer): ICM-42688-P Barometer: SPL006-001 OSD Chip: AT7456E Blackbox: MicroSD Card Slot UART: 6 sets (USART1, USART2, USART3, UART4, UART5, UART6 - Dedicated for Wireless board Telemetry connection) I2C: 1x Used for magnetometer, digital airspeed sensor ADC: 4x (VBAT, Current, Analog RSSI, Analog AirSpeed) PWM: 12x (9x pin headers + 2x solder pads + 1x "LED" pad) ELRS/CRSF Receiver: Supported, connected to UART1 SBUS: Built-in inverter for SBUS input (UART2-RX) LED: 3x LEDs for FC STATUS (Blue, Green) and 3.3V indicator (Red) Analog RSSI: Supported, Named as "RS" Dual Analog Camera Switching: Default to Camera1 Video Input (C1). Switch between C1 and C2 using ArduPilot Relay or INAV Modes/USER. Both cameras should have the same video format, either PAL or NTSC. Supported FC Firmware: INAV: SpeedyBeeF405WING (default) ArduPilot: SpeedyBeeF405WING Weight: 5.6g SpeedyBee F405 WING MINI PDB board Input voltage range: 7~26V (2~6S LiPo) Battery Voltage Sensor: Connect to FC board VBAT, 1K:10K (Scale 1100 in INAV, BATT_VOLT_MULT 11.0 in ArduPilot) Battery Current Sensor: 80A continuous, 150A peak Connect to FC board Current (Scale 195 in INAV, 50 A/V in ArduPilot) TVS Protective diode: Yes FC BEC output: Output 5.2V +/- 0.1V DC Continuous current 2 Amps, 3A Peak Designed for FC, Receiver, GPS module, AirSpeed Sensor, Telemetry module VTX & Camera power supply: The VTX power interface Vv offers two power supply options: direct battery voltage or integrated BEC 5V (sharing the 5V4A Servo BEC voltage) By default, it is set to battery voltage (Ensure the VTX and camera input voltage range is compatible) Switching to 5V power supply is possible via pad jumper (using Servo BEC output) (If using this method, ensure the current requirements for both servo and VTX are sufficient) Servo BEC output: Output 5V +/- 0.1V DC Continuous current 4 Amps, 5A Peak Voltage adjustable, 5V Default, 6V via jumper Designed for Servos. Weight: 5.5g Includes 1x SpeedyBee F405 Wing Mini 2-6S Fixed Wing Flight Controller
