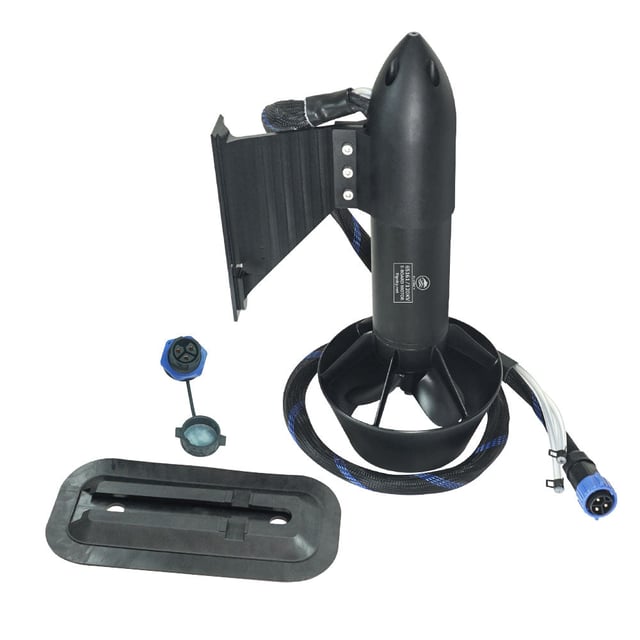

Flipsky Brushless Motor 65161 6000W Waterproof Underwater Thruster electric boat thruster for ROV RC Boat /Jet boards /Outboard motor / Drive boat jet
FLIPSKYFLIPSKY
4.0

Flipsky Brushless Motor 65161 6000W Waterproof Underwater Thruster electric boat thruster for ROV RC Boat /Jet boards /Outboard motor / Drive boat jet

USD 459.85

Description

65161 Motor Spec: Voltage range: 6-20S (25.2-84V) Max Spin Speed(RPM): 16380 KV(RPM/V): 120KV/100KV Max Power:6000W,rated power 3000W Peak current: 200A The number of pole: 6(please write 3 pairs when do setup) Max torque at 60%:9NM Demension: D65*L161mm Max working temperature: 120°C Insulation voltage & leak current: AC500V/10MA/3S Lead wires extension: 8AWGx1300mm Waterproof level:IP68 Weight:3kg Plug: 8.0mm   Motor wire: 8AWG Battery box parameters Battery outer box size: 371*269*186mm Waterproof grade: IP67 Battery box material: ABS Voltage:50.4V Cell specifications: Molicel P42A 27100 Battery capacity: 12S 4P 16.8AH/846.72WH/16800mah. Environment: (-20 degrees Celsius + 50 degrees Celsius) Charger: 50.4V 5.5A Charging time: about 2.6 hours ESC ESC model:75200 Pro V2.0With Water Cooling Enclosure Voltage: 14-84V (safe for 4-20S) Continuous current: 50V/200A; 75V/150A (Values depend on the mounting, ambient temperature and air/water circulation around the device!); Burst: 300A BEC: 5V@1A Support Modes: DC, BLDC, FOC (sinusoidal) ERPM: 150000 Communication Ports: USB, CAN, UART, SPI, IIC Supported Sensors: ABI, HALL, AS5047, AS5048A Input Source Support: PPM, ADC, NRF, UART Supported Sensorless: Yes Regenerative capacity: Yes Programmable via VESC_TOOL: Yes 75200 Size:130x67.7x40.1mm(Including alu. case) Motor/power wire size: 8 AWG Remote control remote control:VX3 Pro Control mode :UART Remote control distance: no interference, 25 meters in a straight line Waterproof grade:IP67 There are 3 adjustable gears (L/M/H) Functions: Cruise control, GPS speed display, infinite throttle
