6" x 20" 3/4 HP Mill/Drill

USD 1723.00

Description

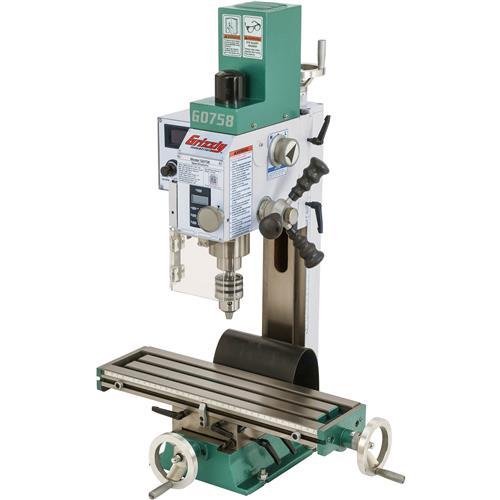

G0758 6" x 20" 3/4 HP Mill/Drill With a high-torque but quiet motor, this versatile mill/drill is ready to be a key player in your shop. Drawing from the heritage of producing previous mill/drills, the G0758 6" x 20" Mill/Drill comes packed with impressive features. The 3/4 HP motor powers the variable-speed spindle control from 50 to 2000 RPM and is displayed on a DRO. Tracking spindle depth is as easy as reading a separate DRO with inch/mm display and zeroing function. Additionally it has super-rigid precision-ground dovetail headstock column and table ways, coarse and fine spindle downfeed, and precision handwheel control for X, Y, and Z-axis. If that is not enough, this fiesty champ has one of the largest tables, table travel, and motor sizes in its class, allowing it to take on a huge range of workpiece sizes. With its R-8 spindle taper, it can also make use of a wide variety of tooling. The head is equipped with a special shifter knob that allows you to drop power-transfer gearing down for maximum torque in the lowest RPM range. Shown with optional T26612 stand and chip tray. Like all Grizzly Mills, the G0758 comes with a 1-year limited warranty. The G0758 manual was written by our U.S.-based Technical Documentation Department and is packed with useful information. The complete and easy-to-read manual makes it easier to assemble and maintain your mill drill. The Grizzly Customer Service and Technical Support Teams are also U.S.-based. Parts for the drill press may be available online and shipped from the Grizzly parts warehouse in Springfield, MO. Made in an ISO 9001 factory SPECIFICATIONS: Motor: 3/4 HP, 110V, single-phase, 10A Spindle taper: R-8 Spindle speeds: Variable, 50–1000 RPM low, 100–2000 RPM high Max distance spindle-to-column: 6-5/8" Max distance spindle-to-table: 8-3/4" Spindle travel: 2" Drilling capacity: 1/2" mild steel Head travel: 8-1/4" Column tilt: 45° left/right Table size: 5-3/4" x 19-3/4" T-slots: 3 @ 1-1/2" centers, 3/8" wide Longitudinal travel: 13-1/8" Cross travel: 5-1/2" Overall dimensions: 19-3/4" W x 21" D x 30-1/4" H Approximate shipping weight: 204 lbs. FEATURES: Dovetail head column and table ways High-torque, low-noise DC motor Variable-speed spindle with DRO Spindle elevation DRO 3-Axis precision handwheel control Coarse and fine spindle downfeed 2-Speed gearbox Zero-setting dials on handwheels INCLUDES: 3–16mm B16 drill chuck Drill chuck arbor B16 x R8 Open-ended and hex wrenches Toolbox
